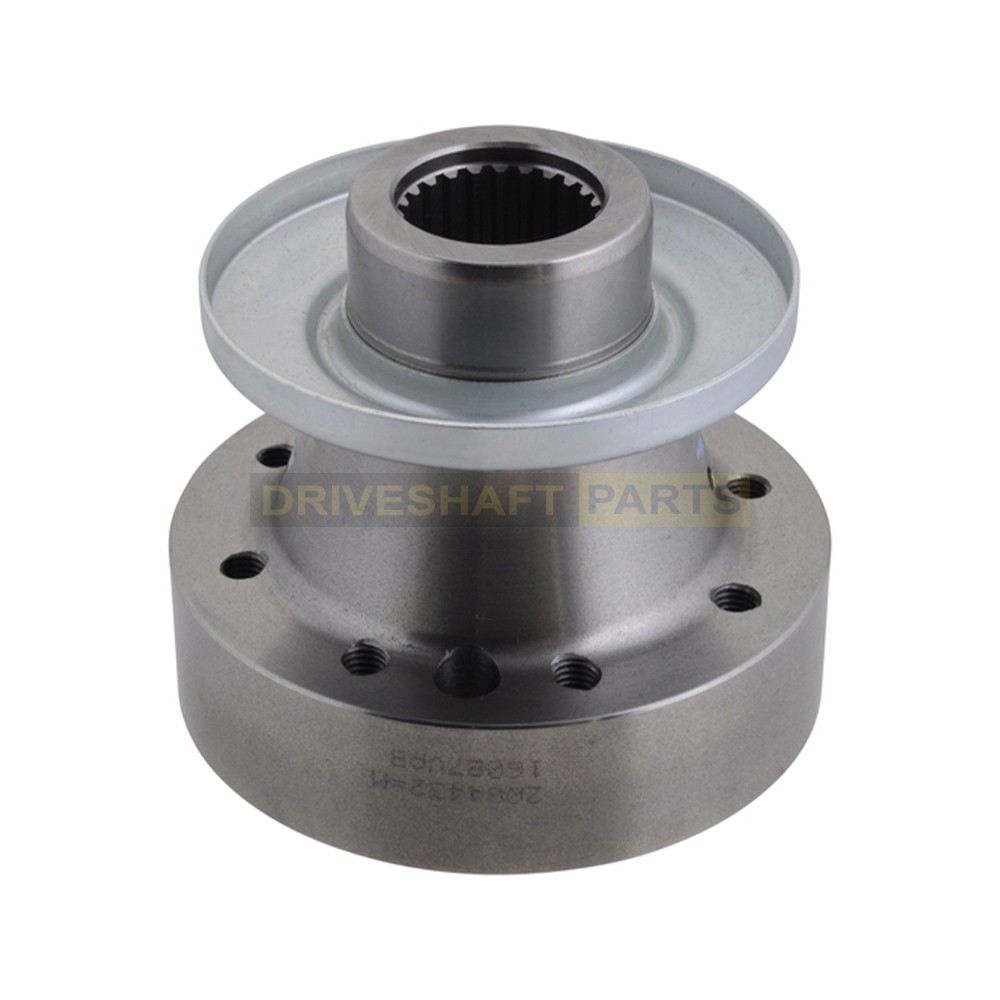

• 2004431 24 Spline Companion Flange Yoke

Differential Pinion Flange

Dana Jeep JK


Series 1310

Major Diameter (D) In. 1.29

Spline Count 24

Involute Spline N

Pilot Diameter (C) In. 1.77-F

Bolt Circle Dia.(B) In.(FL YK) 3.35

Bolt Hole Diameter In (FL YK) M8-1.25T

Number Of Holes (FL YK) 10

Ground Hub Diameter In. 1.875

Length Thru Hole (F) In. 1.5

Flange Face To End Of Hub (G) 3.07

2004431 24 Spline Companion Flange Yoke

Part Number: 2004431S

  • $87.21

Availability: In Stock

Shipping Dimensions: 5 x 5 x 5
Weight: 3.70 lbs
